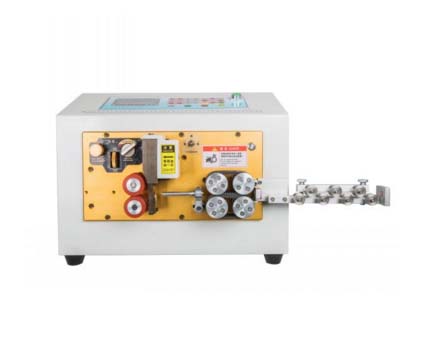

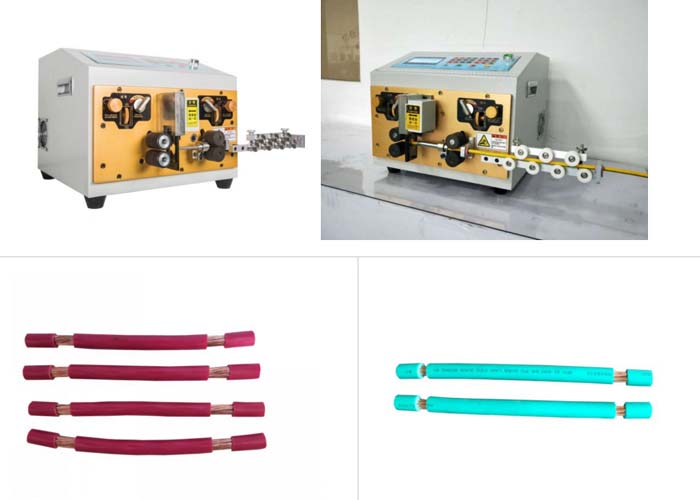

DW-880A粗线型电脑剥线机

外形尺寸Dimensions

L418*W358*H308

重量Weight

35KG

显示方式Display

中文，液晶 Chinese interface LCD display or English interface

电源Power

220V／260W

切割长度(mm)Cutting Length

1mm-99999.99mm

剥皮长度Stripping Length

0.5mm-35mm

中间剥切Intermediate peeling and cutting

带有中间切皮15处Intermediate cut at fifteen

剥线范围Cutting Range

0．1-16mm2多股软线

导线类型Wire Material

PVC、铁氟龙线、玻璃线 PVC and ferromolybdenum fluorine Long Xian, glass wire

切割公差Cutting tolerance

Within 0.002 * Lmm ※ L=cutting length

导管直径Max. wire diam

1-12mm

驱动方式Driving way

四轮驱动，,独立驱动盒驱动Four-wheel drive, independent drive box driver

生产率（次／分）Productivity(pcs／m)

大约50 PCS
